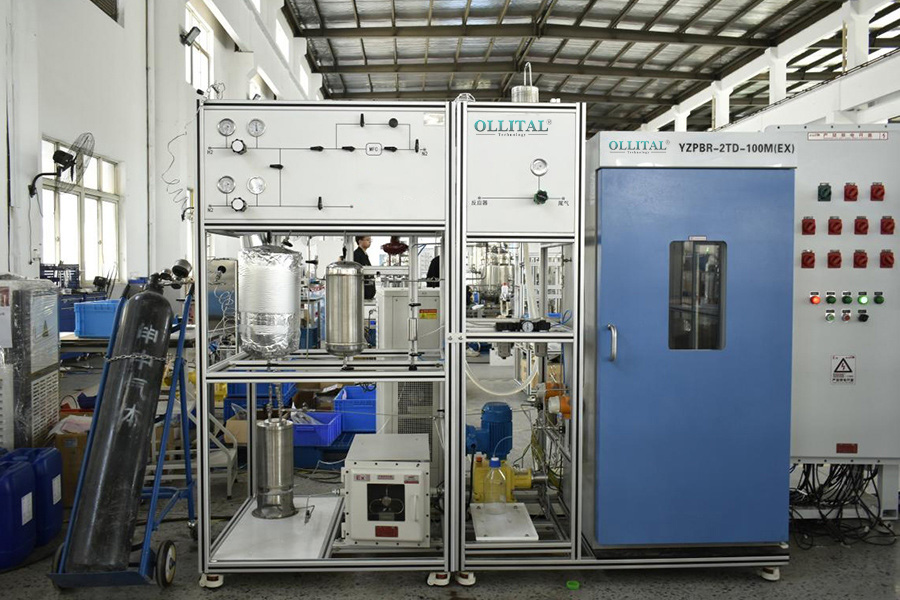

High efficiency catalytic evaluation instrument Catalyst evaluation device

The catalyst evaluation device is a high-precision experimental equipment designed for catalyst performance testing.
  • Item NO.:

    OLT-FD0328
  • Product Orgin:

    China
  • Shipping Port:

    Xiamen
  • Model Number:

    OLT-FD0328
  • Minimum Order Quantity:

    1
  • Voltage:

    AC 220±22V 50Hz 35A
  • Warranty:

    1 year
  • Delivery Time:

    7-14 days
Product Details

The catalyst evaluation device is a high-precision experimental device designed specifically for catalyst performance testing. The device can systematically evaluate the activity, stability and life of the catalyst under different reaction conditions, and achieve fast and accurate test results through automated data collection and analysis, providing strong support for R&D and production in the fields of chemical industry, environmental protection, new energy, etc.



Product Features and Advantages

Product Features:
  1. High-precision detection: Advanced sensors and data acquisition systems are used to ensure the accuracy and repeatability of test data.
  2. Multi-parameter real-time monitoring: Simultaneously monitor key parameters such as temperature, pressure, flow, etc. to achieve comprehensive experimental environment control.
  3. Automated operation: Equipped with an intelligent control system, it can automatically record and store data, reduce manual intervention, and improve experimental efficiency.
  4. User-friendly interface: Intuitive operation interface, graphical display of test process and results, convenient for users to grasp the status of the equipment.
  5. Safe and reliable: The equipment design complies with international safety standards, and multiple protection mechanisms ensure the safety and stability of the experimental process.
Product advantages:
  1. Provide comprehensive and systematic catalyst performance data to support subsequent process optimization and product development.
  2. The equipment has high stability, adapts to different experimental conditions, and meets diversified testing needs.
  3. Easy to install, debug and maintain, perfect after-sales service, and quickly respond to user needs.

Detailed parameters of the equipment:

Product name Catalyst evaluation reaction device
Reaction method Continuous flow reaction
Control PLC control/secondary instrument
Catalyst loading 5ml~1L
Maximum design pressure 0-10MPa
Maximum design temperature RT1000℃ (high temperature and high pressure are not met at the same time)
Main reaction tube material 310S, 316l, quartz glass, Inconel 625, Hastelloy HC276.
Note: This parameter is for reference only. Specific parameters can be detailed according to the actual product model and configuration.



Structural design and working principle

Structural composition:
  • Reaction chamber: Made of high-temperature and high-pressure corrosion-resistant materials to ensure experimental safety and data accuracy.
  • Temperature control system: Precision temperature sensor and heating/cooling device to monitor the reaction temperature in real time.
  • Pressure monitoring system: Equipped with high-precision pressure sensor to ensure stable reaction pressure.
  • Flow control system: Automated flow meter and control valve to ensure balanced supply of reactants.
  • Data acquisition and control system: Built-in microprocessor to record various parameters in real time and display test data through a graphical interface.
Working principle:
  1. Place the catalyst to be tested in the reaction chamber and start the experiment according to the set reaction conditions.
  2. The temperature control, pressure and flow systems work together to simulate the actual application environment.
  3. The data acquisition system monitors various key indicators in real time, analyzes the experimental data through software, and outputs evaluation results such as the activity, stability and life of the catalyst.




Frequently asked questions (FAQ

Q: Is this device suitable for all types of catalysts?
  • A: This device is suitable for most common catalysts, but specific parameter adjustments may be required for special catalysts. Please consult technical support.
Q: How to ensure the accuracy of test data?
  • A: The device uses multi-point sensor monitoring and high-precision data acquisition system, and supports regular calibration to ensure reliable data.
Q: Does the installation and commissioning of the equipment require professionals?
  • A: It is recommended that trained professionals perform installation and commissioning to ensure safe and stable operation of the equipment.
Q: What should I do if the equipment fails?
  • A: Please contact the after-sales service team in time, and we will provide fast-response technical support and repair services.
